Features
• Max Load:15kg/20kg
• Support kinds of Lens preset function
• Pan tilt speed can reach up to 60º/s
• High resetting accuracy, up to ±0.1º
• Adopt die-cast aluminum alloy material
• Adopt high-precision, high-strength gear-driven, self-locked when power is off
• Pan angle:0º~360º continuous
• Protection Class: IP66
• Optional function: returning data of pan tilt position, focal length, focus etc
Specification
| Model | FS-SP2515 | FS-SP2520 |
| Rotating Speed | Pan:0.01º~45º/sTilt:0.01º~15º/s | Pan:0.01º~20º/sTilt:0.01º~10º/s |
| Rotation Angle | Pan:0º~360º continuous, Tilt: +20º~ -60º |
| Number of Presets | 200 |
| Preset Positioning Accuracy | ±0.1º |
| Optional function | Pan tilt position data, focal length etc. |
| Auxiliary Switch | 2 groups |
| Lens Preset | Support,with self-adaptive function |
| Lens control speed | Speed of zoom/focus can be adjustable continuously |
| Auto Cruising | 8 tracks(each with 10 presets) |
| Homing | It can be set up within the scope of 1~60 min |
| Auto Scan | 1 path |
| Protocol | Pelco-D/P |
| Baud Rate | 2400/4800/9600/19200bps |
| Interface | RS485, supporting angle query returns( Or RS422, real-time returns) |
| Input Voltage | AC24V±20%,50/60HZ;DC28V±20% |
| Power Consumption | ≤70W |
| Operation Temperature | Temp:-25℃~+65℃,Humidity:90%±3% RH;-40℃~+65℃ (without condensation) |
| Storage Temperature | -40℃~+70℃ |
| Max Load | 15 kg | 20 kg |
| Load Mode | Top-mounted/side-mounted |
| Driven | Worm gear driven |
| Protection Class | IP66 |
| Weight | 12.5 kg |

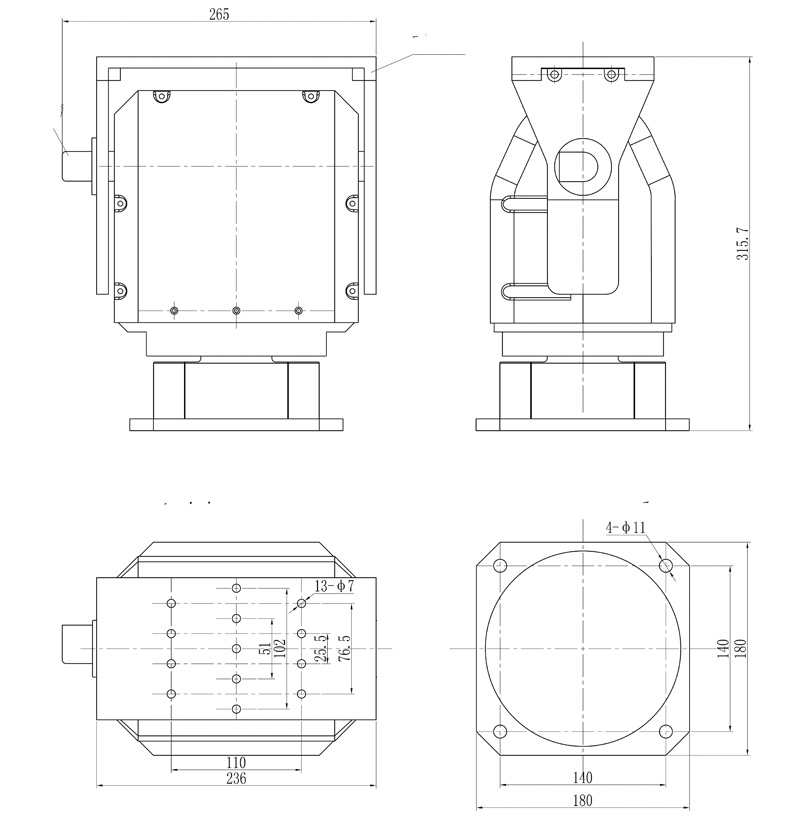

| Dimensions | 265mm*180mm*315mm(L*W*H) |
