Product Features
• Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring
• Adopting thermal imaging technology, not limited by light source, imaging clearly
• Day and night 2 megapixel low illuminance color camera, realizing details observing
• High intelligence, simple to operate, easy to use and maintain
• 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability
• Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating
Specification Sheet
| Monitoring distance | HD camera | 2000m |
| Thermal camera | object | human（1.8m×0.5m） | Vehicle（2.3m×2.3m） |
| Detection | 1300m | 3400m |
| Recognition | 600m | 820m |
| Identification | 150m | 400m |
| Thermal camera | Detector type | uncooled microbolometer focal plane array (VOx) |
| Effective pixels | 384×288 |
| Spectral range | 8～14μm |
| NETD | ≤60mK@F1.0,300K |
| Focal length | 50mm |
| FOV | 11.0°×8.2° |
| Lens control | Electric focusing(auto focus optional) |
| Image process | DDE, pseudo color |
| Camera and video coding | Sensor type | 1/2.8" Progressive Scan CMOS |
| Total pixels | 2.1 MP |
| Lens focal length | F=4.5～135mm, 30× optical zooming |
| Camera control | Auto gain control, auto white balance,
auto backlight compensation, day/night mode switch manual/auto |
| Coding format | H.264 |
| Video resolution | 1920×1080 |
| Video frame rate | 1～30F/S |
| Image adjustment | brightness, contrast ratio, saturation |
| Pan-tilt | Angle | Horizontal 360°continuous rotation, tilt -90°～+90° |
| speed | Horizontal 0°～50°/s, tilt 0°～50°/s |
| Preset bits | Max 128 |
| Cruising | 6 cruising paths, 20 presets each path |
| Anti-lightning | TVS 6000V |
| Interface | Power supply | DC12V |
| Network interface | 1×10Base-T/100Base-TX, RJ45 |
| Other interface | RS485, BNC video output |
| Environment indicators | operation temp | -25℃～+55℃ |
| Storage temp | -40℃～+65℃ |
| Relative humidity | 10%～90% |
| Anti-salt fog | continuous spraying for 48 hours at PH 6.5-7.2 |
| Protection grade | IP66 |
| Power supply | power supply | DC12V, equipped 220VAC～12VDC/3A water proof power supply |
| power consumption | ≤30W |
| Physical features | weight | 7.5kg |
| Installation method | Outdoor base mounting/vehicle mounting |

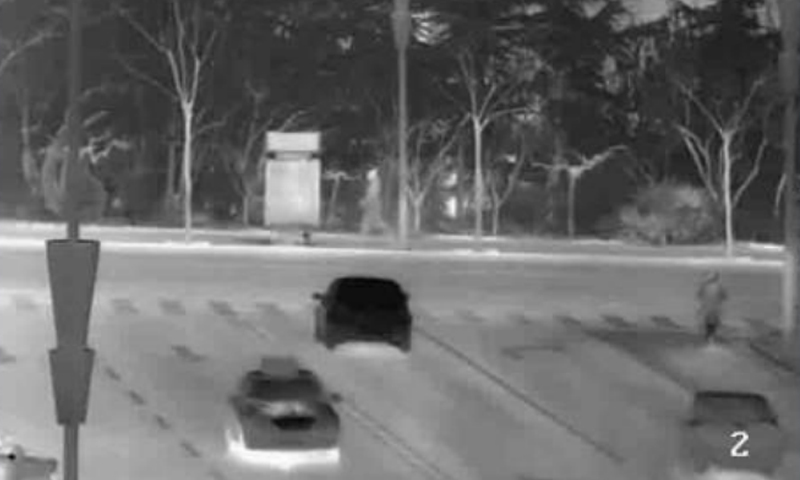

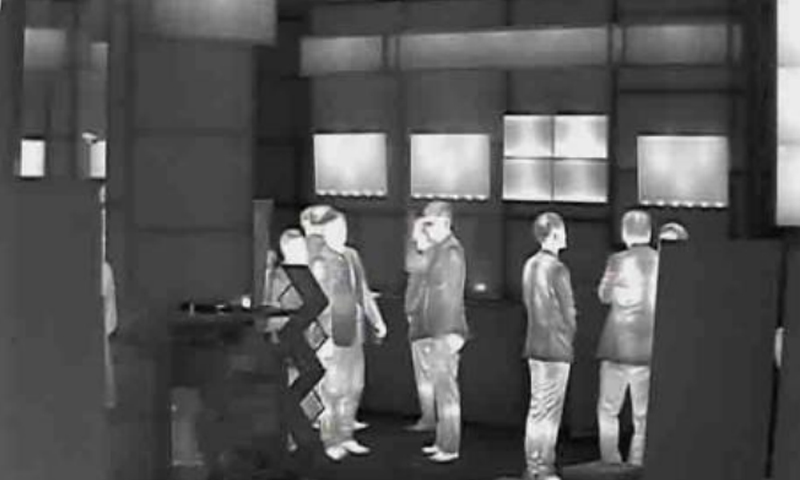

Video Demo
