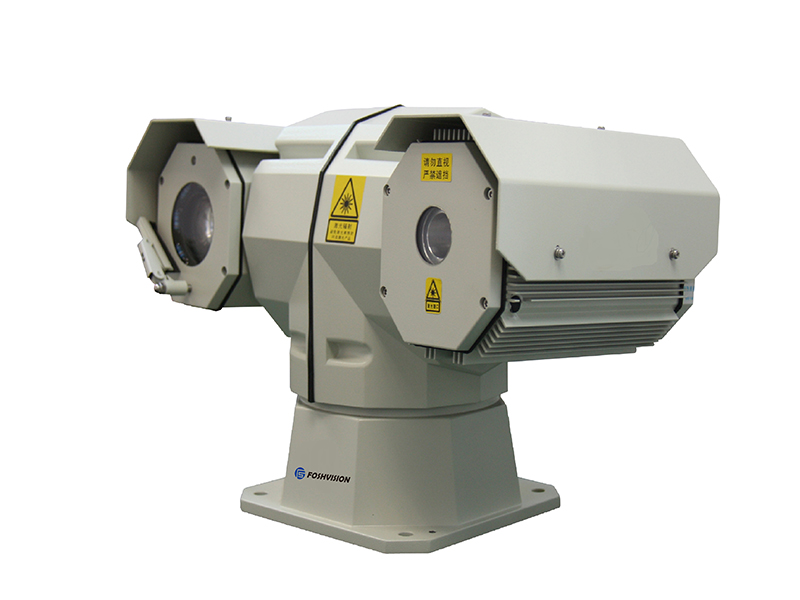

Model No:

FS-TL635

Categories:

Short Range Night Vision Camera
PRODUCT DESCRIPTION

Key Features

• Adopting near-infrared light source to fill light, good concealment, not easy to be detected

• Specialized high definition night vision laser homogenization technology, laser spot high brightness and good homogenization of laser spot, exquisite image with no noise

• 2 megapixels color to black camera, realizing day and night continuous monitoring

• Super large angle continuous servo synchronous zooming laser illuminator, MMA inside optical axis fine adjustment aligned technology

• High performance embedded processor, adopting high efficiency H264 compression algorithm, clear, real time and smooth video

• Supporting dual stream, small time delay, fully satisfying different network bandwidth

• Fully supporting ONVIF、GB/T28181, providing SDK, can docking with main monitoring platform home and abroad

• Supporting WEB browsing video, providing access to NVR platform to conduct uniform parameter configuration and operation state management

• Humanized design, high intelligence, supporting 3D locating, power off memory, zooming and speed changing

• Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supply mode such as solar energy

• IP66 protection grade,2000V anti-lightning, adapting to all kinds of complex environment

• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain


Tech Data

ModelFS-TL635
Monitoring distanceNight vision800m
Day vision1100m
Laser illuminatorPower5w
Wave length810nm
Angle0.7°-50°
Even lightMCIC
Visible light cameraSensor1/2.8" Progressive Scan CMOS
Total pixels2.1MP
Lens4.5~135mm, 30xoptical zoom
Lens apertureF1.6-4.4
Min lux0.05Lux (color), 0.01Lux (black and white)
Camera control

Auto gain control, auto white balance, auto backlight compensation,

supporting manual and auto day and night mode switch

Video codingCoded formatH.264
Video resolution1920 x 1080
Bitrate64Kbps-4Mbps
Frame rate1-25f/s(50Hz), 1-30f/s(60Hz)
Subtitle overlaystation logo, date, time
Image adjustmentbrightness, contrast, saturability
Supporting protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP,

SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)

Pan tiltAnglePan 360° continuous, tilt -90° to +90°
SpeedPan 0°-80°/s, tilt 0°-60°/s
Presets256
Cruising function6 paths
InterfaceNetwork interface1×10Base-T/100Base-TX, RJ45
Power supply interface1×DC 24V socket, for external power adapter
Audio interface1×Line In, 1×Line Out
Alarm interface1 switch input, 1 switch output
Environmental indicatorsWork temp.-25℃ to +55℃
Storage temp.-40℃ to +65 ℃
Protecting gradeIP66
Anti-vibration10-55Hz, 2m/s2, 0.75mm
Anti-impact150m/s2, 11ms
Anti-salt fogAfter continuous spraying for 48 hours at PH 6.5-7.2, surface does not change
Power supplyPowerDC 24V±5% /4.0A, please use appendant power
Consumption≤60W
Physical featuresSize240mm×374mm×243mm
Weight8Kg
