Product Features
• Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black
• Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring
• MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition
• Supporting fog penetration, backlight compensation, multistage wide dynamic
• Optional auto focusing function, realizing multiple focusing mode and triggering mode
• Supporting camera back focal length fine adjustment technology and camera remote debugging
• Supporting long focal length speed limit and 3D locating function
• Abundant network protocol and good network applicability, adapting all kinds of network environment
• External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment
• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Technical Specification

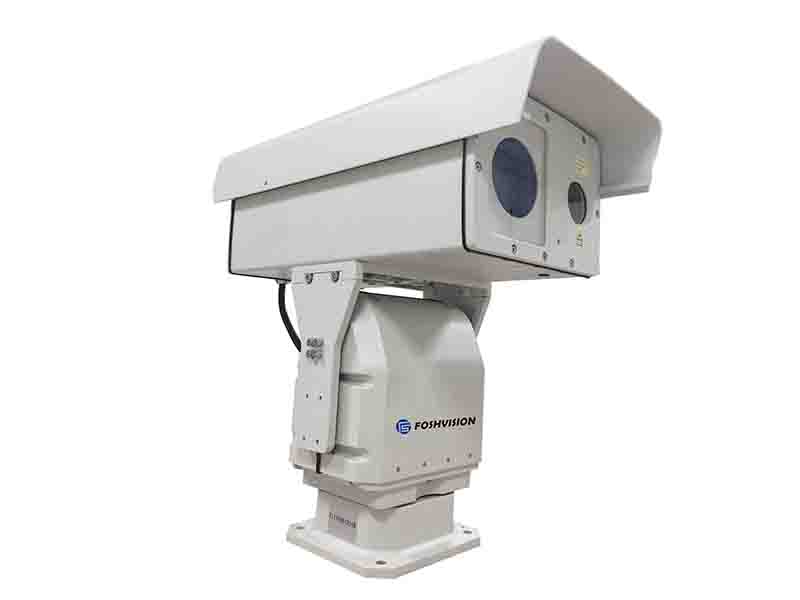

Model | FS-UL1120 |
Monitoring distance | Day vision | 1100m |
Night vision | 2100m |
Imaging lens | Focal length | 12.5~400mm |
FOV | 1°~33.5° |
Visible light camera | Sensor type | 1/1.8''Progressive Scan CMOS |
Camera control | Automatic gain control, automatic white balance, support manual and automatic day and night mode conversion |
Fog penetration | ON/OFF (optional) |
Noise reduction | 3D noise reduction |
Coding mode | H.265/H.264/MJPEG |
Video Resolution | 1080p,supporting three stream |
Video bit rate | 32Kbps~16Mbps |
Video frame rate | 50Hz:25fps(1920×1080),25fps (1280×720) |
60Hz:30fps(1920×1080),30fps (1280×720) |
Image Adjustment | Brightness, contrast, saturation, sharpness |
Network protocol | TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP |
Illuminator | Illuminating lens | 60* zooming laser telephoto lens |
Power | 8W |
Wave length | 810nm |
Illuminating angle | 0.5°~30°continuous changing |
Pan tilt | Load capacity | 22kg(top mount) |
Angle | Horizontal 360°continuous rotation,pitching -60°~+20° |
Speed | Horizontal 0.1°~9°/s, pitching 0.1°~4°/s |
Presets | 255, supporting lens zoom focus presets |
Auto cruising | 2 paths, 64 preset bits each path |
Interface | Power interface | DC30V |
Network interface | 1×10Base-T/100Base-TX,RJ45 |
Environment indicators | Working temp. | -25℃~+55℃ |
Storage temp. | -40℃~+65℃ |
Protection grade | IP66 |
Power | Power supply | AC90~295V into DC30V, waterproof power supply |
Consumption | ≤80W |
Physical features | Size | 590×260×495(L×W×H)mm |
Weight | ≤25kg |
Installation | outdoor base mounting |
