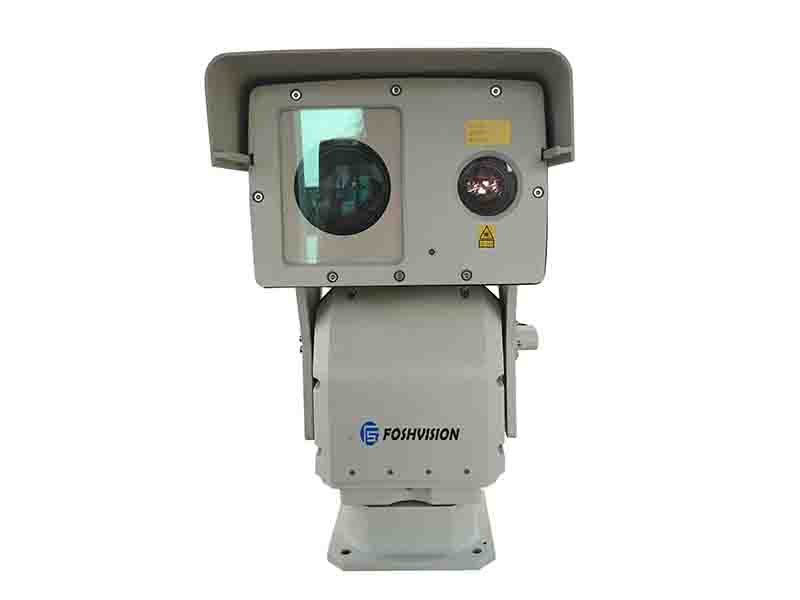

Model No:

FS-UL2120

Categories:

Long Range Night Vision Camera
PRODUCT DESCRIPTION

Key Features

• Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

• Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

• MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

• Supporting fog penetration, backlight compensation, multistage wide dynamic

• Optional auto focusing function, realizing multiple focusing mode and triggering mode

• Supporting camera back focal length fine adjustment technology and camera remote debugging

• Supporting long focal length speed limit and 3D locating function

• Abundant network protocol and good network applicability, adapting all kinds of network environment

• External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain


Specification

Monitoring distanceNight vision2100meters
Day vision5100meters
Laser illuminatorIllumination lens100mm zoom laser telephoto lens
Power15W
Wave length810nm
Illuminating angle0.3°-18°continuous change
Even lightMCIC even light technology
Imaging lensFocal length20-750mm
FOV0.5°-17.8°
Auto focusSupport (optional)
Fog penetrationSupport (optional)
Visible light CameraSensor1/1.8" Progressive Scan CMOS
Coding modeH.264/MPEG4/MJPEG
Video resolution1080P, CIF, supporting three data rates
Video bitrate32Kbps-16Mbps
Video frame rate1-25f/s(50Hz), 1-30f/s (60Hz)
ShieldMaterialPrecision casting aluminum alloy
Window glass4mm crystallite ultra clear optical glass
Pan-tiltLoad capacity50kg(top mount)
AnglePan 360°continuous, tilt -45° to +45° ( optional -60° to +20°)
SpeedPan 0.01°-12°/s, tilt 0.01°-8°/s
Presets255, supporting lens zoom focus presets
Auto cruising8 paths, 10 presets each path
Anti-lightning2000V
InterfacePower supply interfaceDC24V
Network interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsOperation temperature-25℃ to +55℃
Storage temperature-40℃ to +65℃
Protection gradeIP66
Power supplyPower supplyDC24V±10%,appendant AC220V-DC24V/5A water proof power supply
Power consumption≤150W
Physical featuresWeight50kg
Installation methodoutdoor base mounting
